The BJNZ-W200Nm microcomputer controlled material torsion test machine is mainly used for testing the torsion mechanical properties of materials and finished products at room temperature. It can also be used to test the torsional failure of materials and finished products. The test specimen is installed between adjustable clamping fixtures to adapt to the test of torsion mechanical properties of different tested specimens. The test machine uses computer control operation, and the software synchronously displays the curves of torque - time, twist angle - time, torque - twist angle, torque - angle and so on. The parameters such as angle, torque and torque peak are displayed in real time, and the test results can be stored and printed.

GB/T 10128 "torsion test method for metallic materials at room temperature"

JJG 269 "verification regulation of torsion test machine"

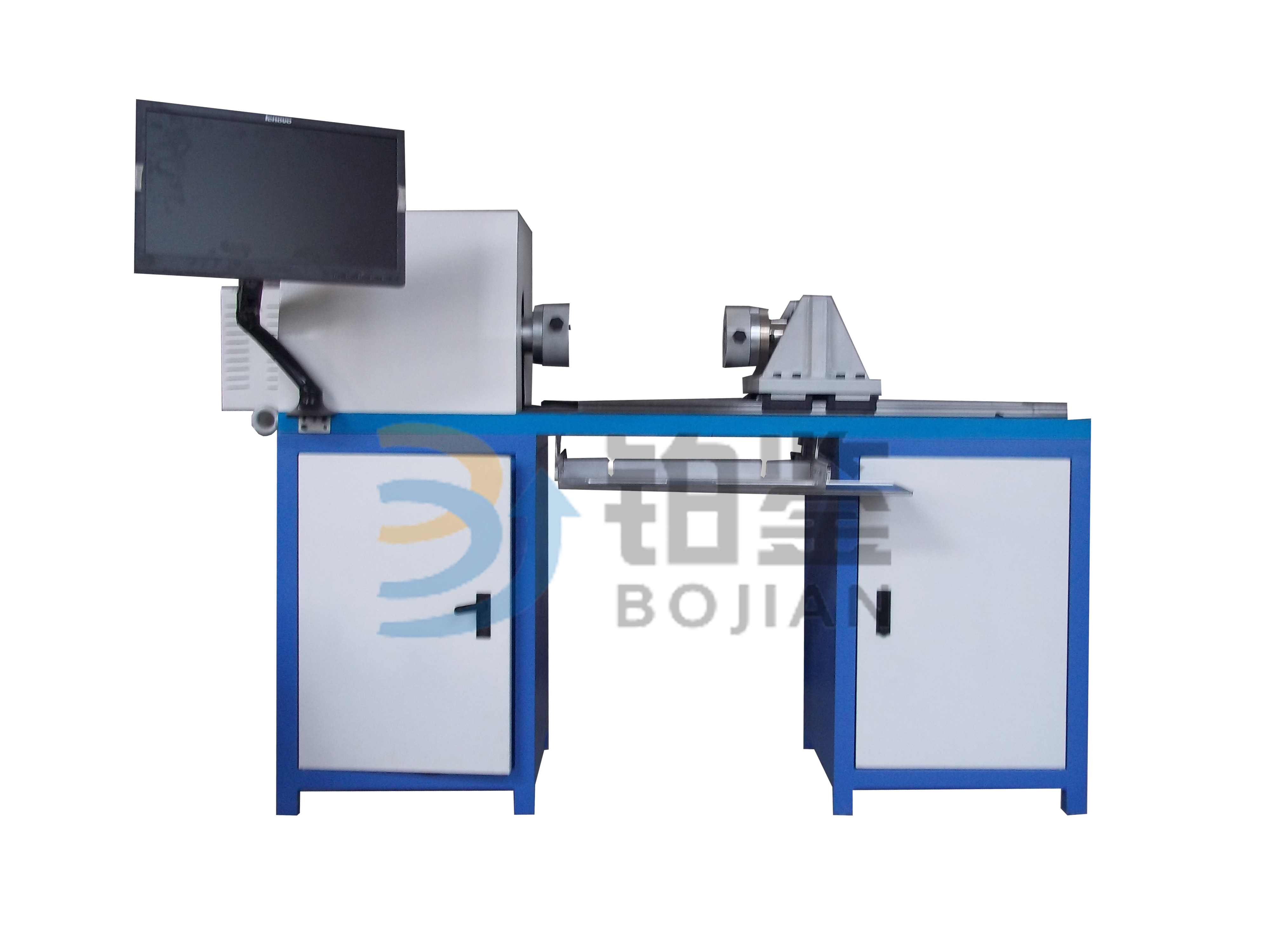

The main engine of the material torsion test machine is the horizontal structure. The torque disc connection sensor on the left end is the fixed end, the right end is loaded as the AC servo motor through the reducer drive drive disc rotation, through the loading of the sample to the torque disk end to carry on the test, the torque acquisition end can be moved along the guide rail, used to adjust the test space.

Torque range: 0 ~ 200Nm

Torque measurement range: 2Nm-200Nm;

Minimum reading value of torque: 0.01Nm

Test torque resolution 1/ + 300000

Relative error of torque indication: less than or equal to 1% (two directions of forward and reverse).

Relative error of torque repeatability: less than 1% (forward and reverse two directions)

Angle measurement range of 0-10000 degrees

Relative error of corner indication: less than or equal to 1% (two directions of forward and reverse).

Twist angle (small angle measurement) shows minimum resolution: 0.0001 degrees.

Minimum reading value of microcomputer controlled material torsion testing machine: 0.01 degree

Test speed: 0.05-720 degree /min (before yielding should be 3 degree /min-30 degree /min, yield less than 720 degree /min) stepless speed regulation.

Relative error of torsion velocity is less than or equal to 1% (two directions of forward and reverse).

Repeatability error of torsional velocity indication: less than 1%

Distance between loading plate and torque plate: 0 ~ 300mm (negotiable)

Coaxiality of two chuck: < < < 0.3mm

Specimen holding diameter: standard sample (circular specimen 10, gauge 50mm, 100mm)

Power supply: AC 220V + 10%, 50Hz;

Sample clamping method: a set of fixture is provided according to user's sample.

Test grade: Grade 1

Net host size (mm): about 1050*430*550mm

Host weight (kg): about 200
