Welcome to Ji'nan Bojian Testing Machine Co., Ltd.

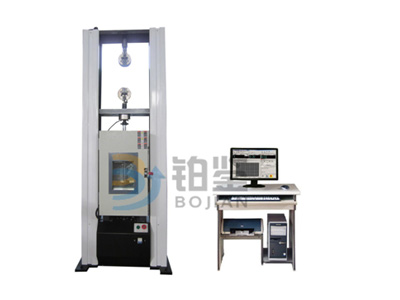

        The BJGDD-W5KN microcomputer controlled high and low temperature universal testing machine is a new generation of double space microcomputer control test machine designed specially for universities and scientific research institutes. The design of the host and auxiliary test machine to draw lessons from the foreign advanced technology, beautiful appearance, convenient operation, stable and reliable performance.

The electronic universal testing machine fully meet the national standard GB/T228-2002 "tensile test method of metallic materials at room temperature and" GB5237.6-2004 "Aluminum Alloy building material insulation material" requirements, at the same time according to the GB, ISO, JIS, ASTM, DIN and provide users with a variety of standard test and data processing, and has good scalability.

The high and low temperature microcomputer control electronic universal testing machine is widely used in material inspection building materials, aerospace, machinery manufacturing, wire and cable, rubber plastic, textile, home appliance industry analysis, is the ideal test equipment, scientific research institutions, universities, industrial and mining enterprises, and technical supervision and inspection departments of arbitration. It has a very broad application prospect.

1. styles: microcomputer control and door structure

2. maximum test force: 5000N

3. test force division: stepless speed regulation, x 1, x 2, x 5, x 10 four gear

4. the measuring range of the electronic universal testing machine: the range 0.4%-100%;

6. displacement resolution: 0.01mm

Accuracy of 7. displacement measurement: over 0.5%

8. displacement speed control range: 0.001mm/min ~ 500mm/min

9. displacement speed control precision: 0.5%;

10. high temperature electronic universal testing machine level: level 0.5

11. beam maximum stroke: 800mm (customizable)

12. effective test space width: 500mm (customizable)

13. control range of constant force, constant deformation and constant displacement: 0.5% - 100%FS

1、室溫10℃-35℃范圍內;相對濕度不大于80%；

2、周圍無振動、無腐蝕性介質和無較強電磁場干擾的清潔環境中；

3、電源電壓的波動范圍應在額定電壓的土10%以內；

4、在穩固的基礎上正確安裝。
