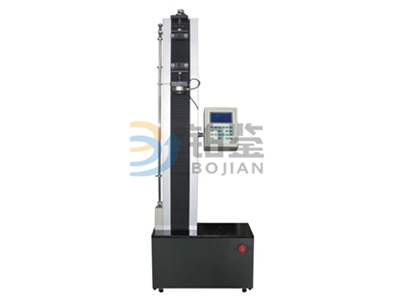

Product name：BJDS-500N Electronic automatic stripping test machine
Product model：
Product range：BJDS-500N
Immediate consultation
Online Message
BJDS-0.5KN Electronic automatic peeling tester can detect rubber, film and other materials peel test. Other fixtures can also be used to test mechanical properties of metals and non-metals.
1. host one
A set of 2. special 180 degrees peeling fixture
3. precision stepping motor and governor
4. high precision load sensor
5. single chip computer LCD screen controller
6. photoelectric encoder one
7. POS bill printer (selection)
8. data lines, tools
1. maximum test force 500N
2. resolution force 0.01N
The relative error of 3. values is + 1%
4. test space 0-500mm
5. beam moving speed 1-500mm/min
6. displacement measuring stroke 500mm
7. displacement resolution 0.01mm
8. displacement speed control precision of + 1%
9. test machine level 1
10. liquid crystal display content test force, displacement, peak value, running state, speed and so on.
11. mainframe weight about 130Kg
The size of 12. test machine is about 530 x 265 x 1580 mm
13. the appearance should meet the requirements of GB/T2611
14. complete sets meet standard requirements
15. protective function test machine has overload protection function
16. power supply AC 220V, 50Hz
